Dimensions Base Piece for Surface Mounts
A Stand Alone Option

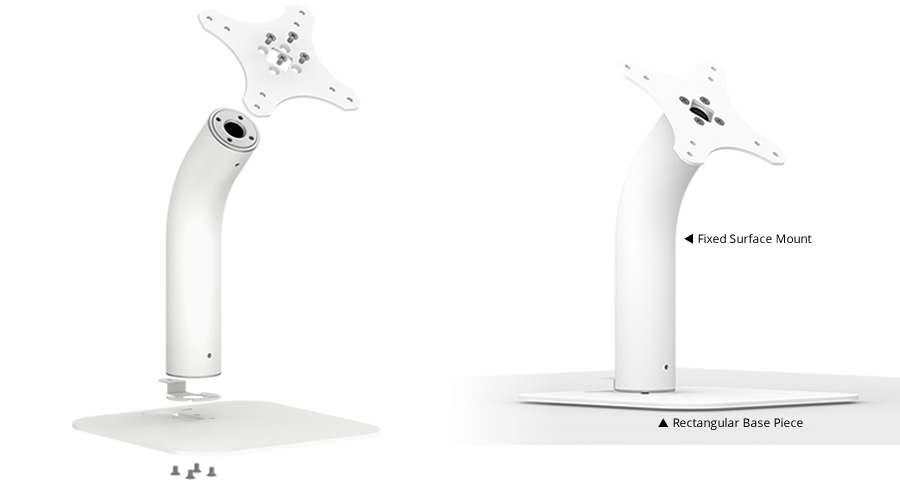

The Rectangular Base Piece for the Fixed Surface Mount transforms your surface mount into portable Vesa Display. The base piece allows for the surface mount to freely stand on a surface, desk, table or counter top. Ideal for tradeshows, counter / table top exhibits, quick set ups or satisfying the need for portablity. The base piece makes your kiosk or vesa compatible set up portable, as it elegantly dispalys your tablet or other VESA compatible device.

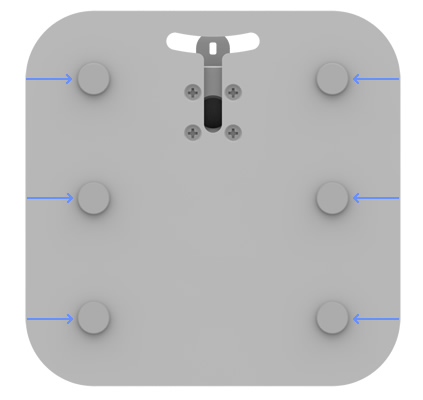

Non-Slip Base
The non-slip pads located on the bottom of the base piece allow for stability and portability, all at the same time. These provide balance and strength to the base and to your surface mount kiosk at large. No slipping or moving allows for ease of interaction for users.
What's in the box
Rectangular Base Piece for Surface Mounts
(4) M4 x 12mm Philiips countersink screws
(1) Kensington Lock Slot Add-on for Surface Mount
Installation instructions [Download]
WARNING: California Prop 65This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to P65Warnings.ca.gov
Additional Information
| SKU/UPC | VB_MNT_BP2_WHT |
|---|---|
| UPC | 840014213610 |
| HS / Harmonized Code | 830249 |

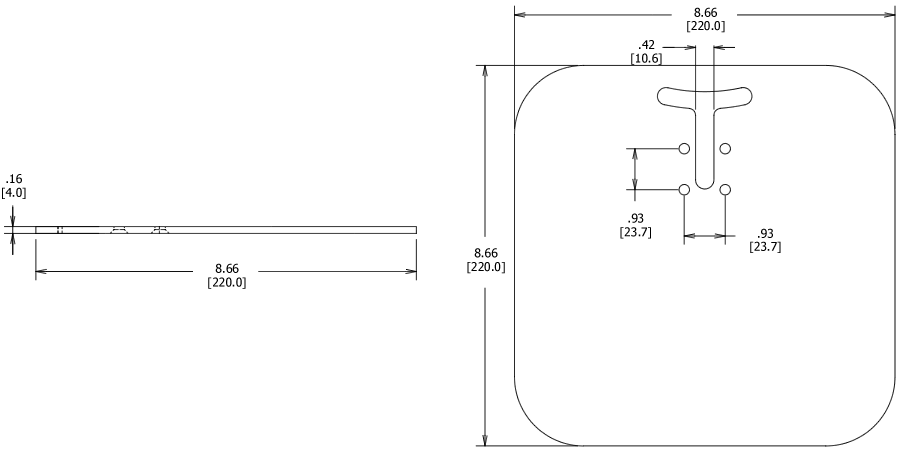

| Net Length | 8.66" [220mm] |
| Net Width | 8.66" [220mm] |
| Net Height | 0.16" [4mm] |
| Net Weight | ~3 pounds [1.36kg] |
| Package Length | 15.5" [394mm] |
| Package Width | 10.5" [267mm] |
| Package Height | 1.25" [32mm] |
| Package Weight | 3.7 lbs [1.678kg] |
| Other | Compatible with VB_VESA_MNT_FXS2_WHT |
